PAINTED AND ASSEMBLED IN ITALY
Tuned for ultimate racing comfort
Aggressive rider position
Integrated seatpost clamp and cable routing
Possibility to customize build with after-market components thanks to the standard seat post and fork steerer diameters
Frame Specs
Sizes: XS (45) - S (48) - M (51) - L (54) - XL (57)
Steam: Included . XS 90mm - S 100mm - M 100mm - L-110mm - XL-110mm
Material: Columbus Carbon Monocoque
Headset: IS 52/28,6 | IS 52/40
Seatpost: ø 27,2
Seat Clamp: Hidden (included)
BB Shell: Press Fit 86,5 x 41 mm
Ft. derailleur: Braze-On
Routing: Full Internal - Di2 Compatible
Color: Sun Faded Laser Blue / Midnight Scream
Tyre Clear.: up to 700x30 mm
Fork: Columbus Disc 1-1/2” Carbon Monocoque Internal Cable Routing
Weight: Frame 990g (size M) - Fork 420g (uncut)

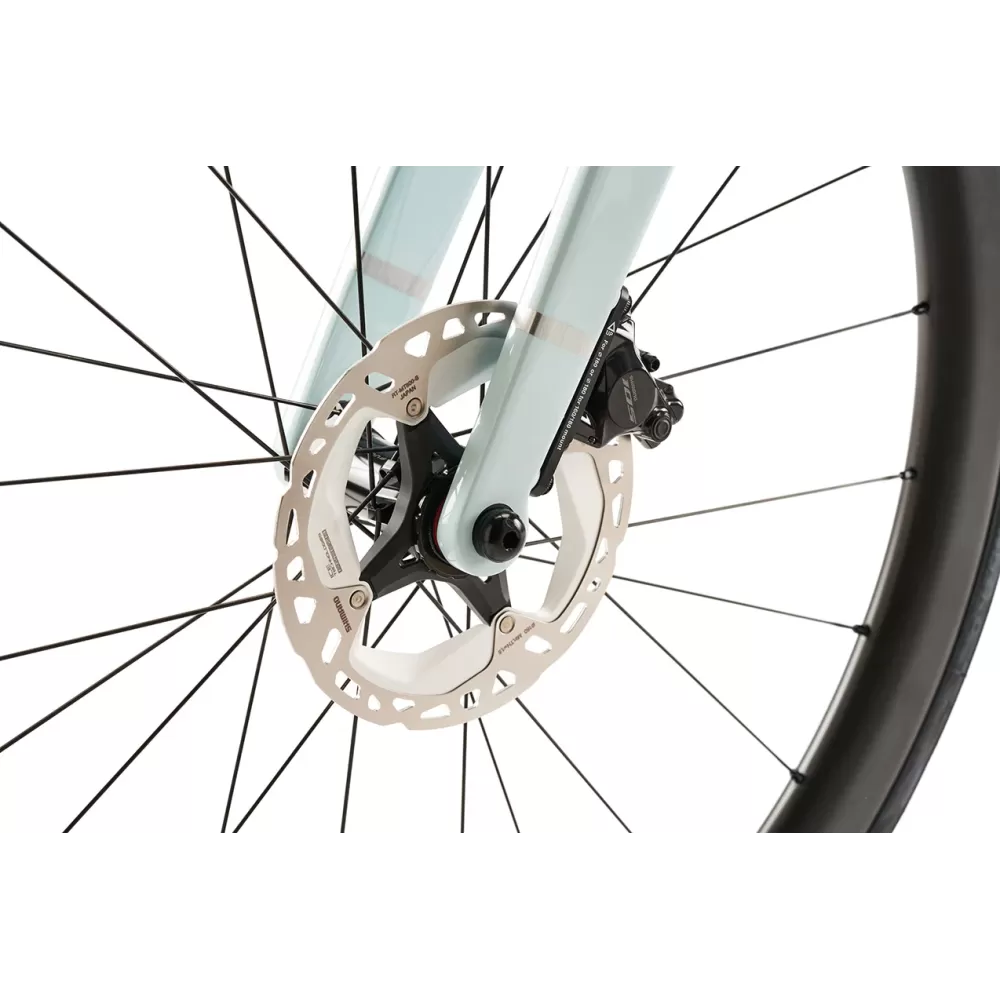

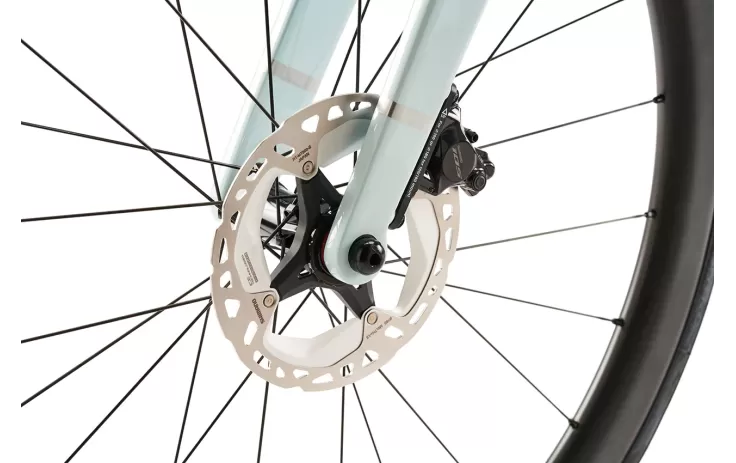

Brake: Flat Mount Disc Brake, Rotor Size Up To 160 mm
Dropouts ST: Rear TA Ø 12x142mm - M12x162 / Front TA Ø 12x100mm - M12x120
Highlights: Ft.-Re. Skewers, Headset, Stem
Assembly
Colour: All Colours
Drivetrain: 105 Di2

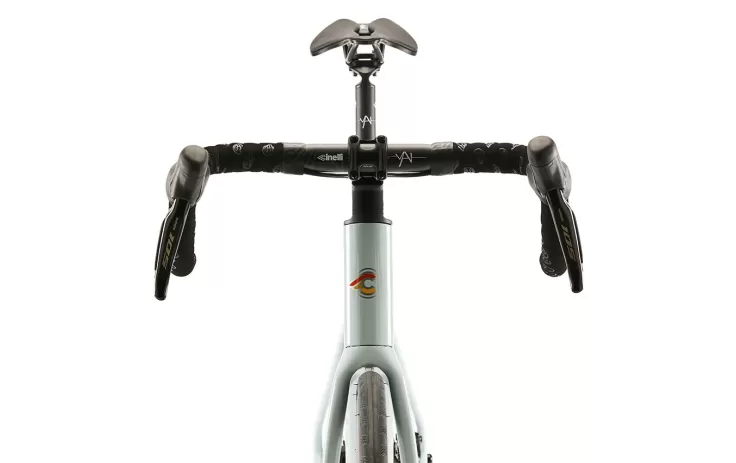

Handlebar: Cinelli Vai
Stem: Alu 6063
Seatpost: Cinelli Vai ø 27,3
Shifters: Shimano 105 R7170
