Product technical specifications
- Long-lasting performance
- High-quality seal
- Easy disc brake rotor installation with spline mount and lock ring
- Over the Locknut Distance (O.L.D.): 135 mm
- Use: MTB, Trekking

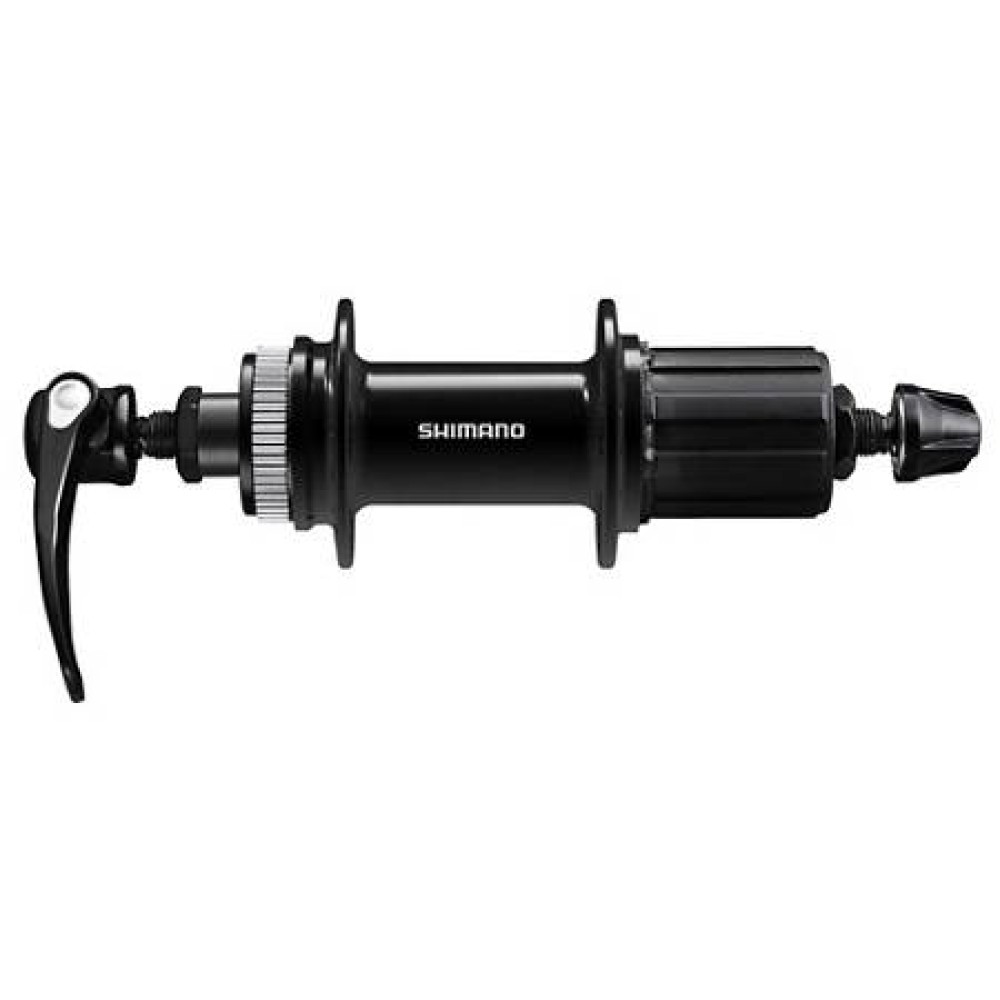

- Model: FH-QC400-HM
- Freehub body: Shimano 8-/9-/10-/11-speed
- Brake type: Center Lock Disc
- Flange distance: 55.45 mm
- Offset: 7.6 mm
- P.C.D.: left 45mm / right 45mm
- Flange diameter: left 53.8mm / right 53.8mm
- Hub: Contact seals
- Type: Quick Release 168 mm
- Axle length: 135 mm
- Spoke hole: 36H
- Material: Hub - Aluminum, Axle - Steel, Freehub body Steel
TECHNOLOGIES
CENTER LOCK System makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
